Product Type: Nail Tools
Material: Nail Tools
Hardness: 82-85hra
Application: for Wire Nail Making
Surface: Finish Ground
Transport Package: Standard Export Packing

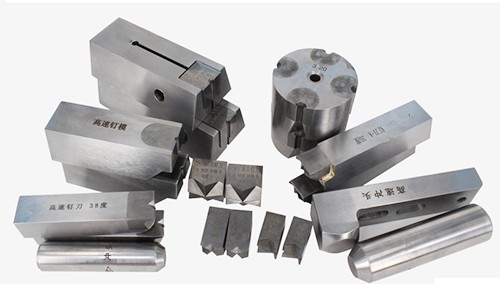

Our nail production tools for making roofing nails, collated nail, fluted nails, clout nails, panel pins, oval nails,ring shank nails,scew shank nails,round wire nails, serrated galvanized clout nails, spiral nails, serrated nails,etc.

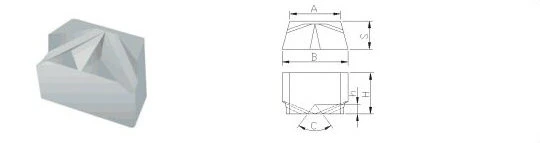

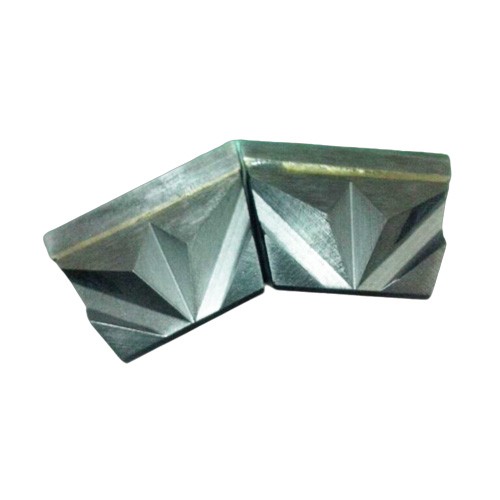

Types of the nail making dies
Type | Size(mm) | |||||
A | B | S | H | h | c | |
ZY01 | 13.00 | 16 | 5.7 | 10-20 | 2 | 75 |
ZY02 | 13.00 | 17 | 7.7 | 10-20 | 2.5 | 75 |
ZY03 | 16.40 | 19.3 | 7.7 | 10-20 | 2.5 | 75 |
ZY04 | 18.00 | 21.9 | 6.9 | 10-20 | 2 | 75 |
ZY05 | 18.60 | 23 | 8.8 | 10-20 | 2.7 | 75 |
ZY06 | 18.90 | 24 | 10.6 | 10-20 | 2.5 | 75 |
ZY07 | 10.00 | 13 | 5.6 | 10-20 | 1.2 | 90 |
ZY08 | 13.00 | 17 | 9 | 10-20 | 2.3 | 75 |
ZY09 | 14.50 | 20 | 10 | 10-20 | 3 | 75 |
ZY10 | 18.00 | 23.5 | 10.5 | 10-20 | 2.3 | 75 |
ZY11 | 19.00 | 25.8 | 12.5 | 10-20 | 4 | 75 |
ZY12 | 12.00 | 16 | 9 | 10-20 | 2.5 | 75 |
ZY13 | 17.00 | 21 | 10 | 10-20 | 2 | 90 |
ZY14 | 18.00 | 22 | 9 | 10-20 | 2.6 | 90 |
ZY15 | 20.00 | 24 | 11 | 10-20 | 2.6 | 90 |
ZY16 | 13.00 | 18.5 | 9 | 10-20 | 2.5 | 90 |
ZY17 | 19.00 | 21 | 10 | 10-20 | 2.5 | 90 |
ZY18 | 9.00 | 11 | 5.5 | 10-20 | 2 | 90 |
ZY19 | 18.00 | 20 | 9 | 10-20 | 2.5 | 90 |
ZY20 | 12.70 | 15.5 | 5.7 | 10-20 | 2.2 | 75 |
ZY21 | 12.80 | 16.1 | 7 | 10-20 | 2.5 | 75 |
