Application: Hardware
Material: High Speed Steel / Tungsten Steel
Processing Method: Forming Mould
Technics: Forming Die
Process Combination: Single-Process Mould
Manufacturing Technology: Automation Technology

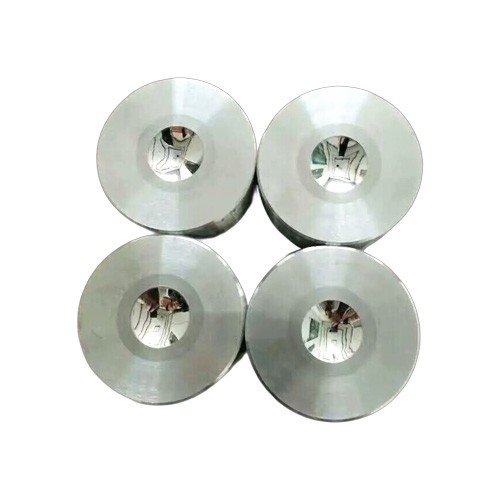

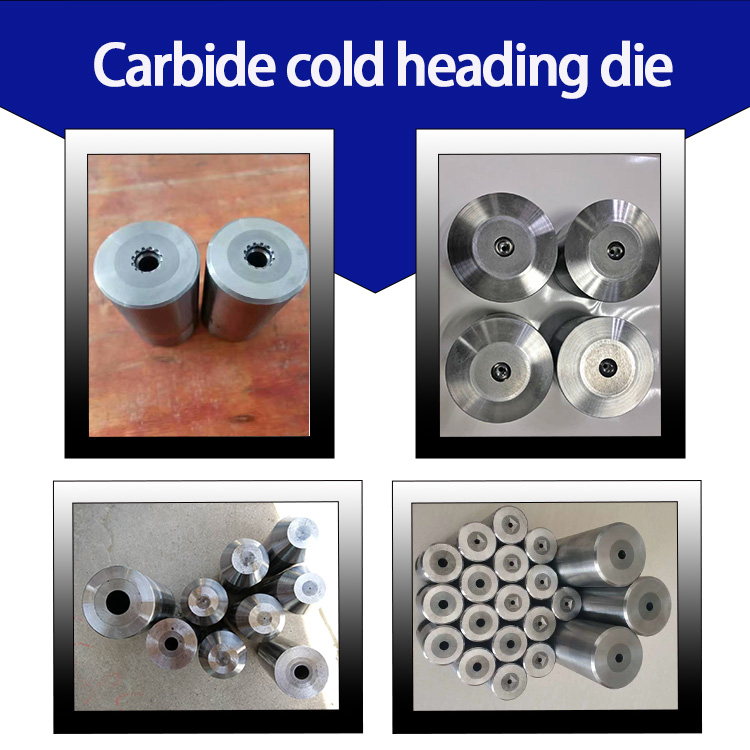

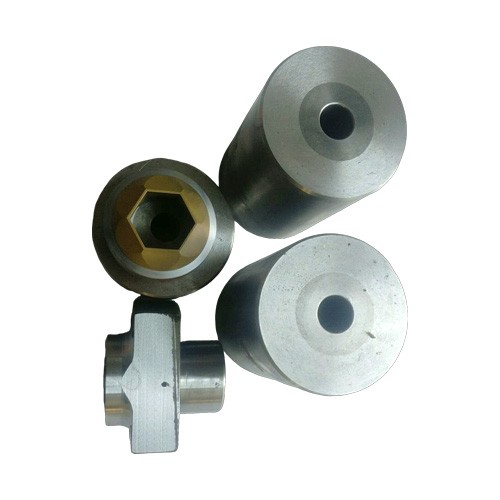

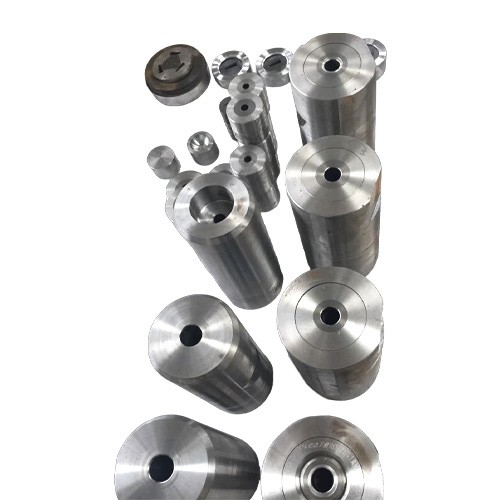

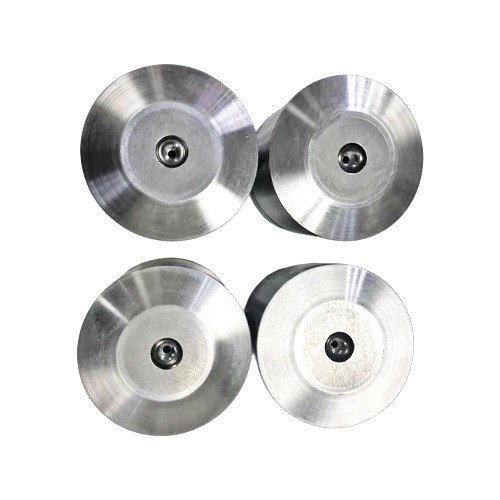

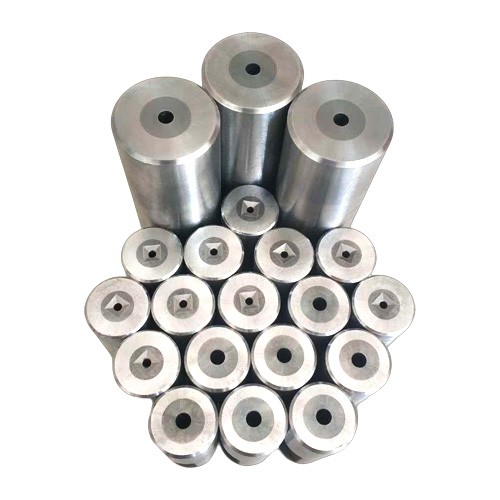

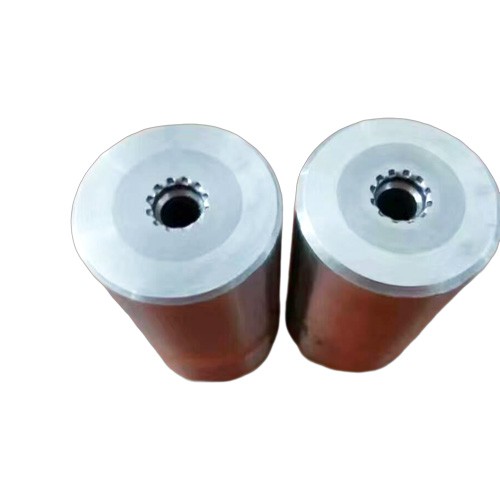

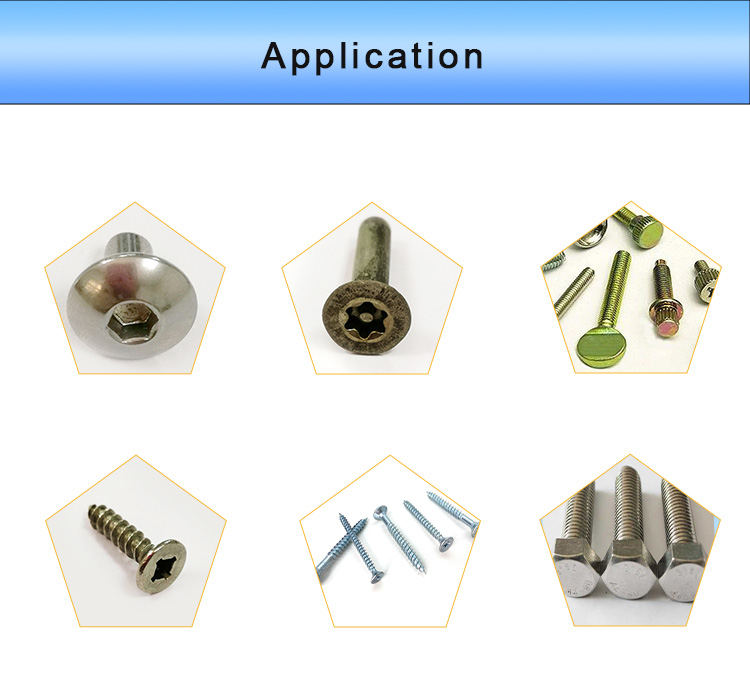

Tungsten carbide cold heading die for cold punching and heading of screws and nuts. High impact resistance .Toughness ,wear resistance,and quality consistency.You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries.For stable performance and high-cost-effectiveness.They have been proved to be ideal in making non-ferrous metal , ferrous metal and their alloys.
Main die Product List: | ||
Type of machine | Mould diameter(mm) | Mould length(mm) |
0#(DH-5) | 20 | 35 |
1/8(DH-10) | 30 | 45 |
3/16(DH-15) | 34.5 | 67.5 |
1/4(DH-20) | 42 | 85 |
5/16(DH-25) | 54 | 100 |

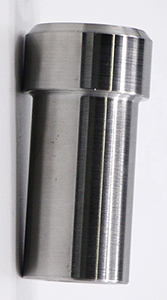

Type of machine | Small head diameter (mm) | Big head diameter(mm) | Small head length(mm) | Big head length(mm) | Product Photo |
0# | 12.0 | 12.5(13.0) | 25.0 | 5.0 |
|
1/8 | 15.0 | 15.5(16.0) | 30.0 | 5.0 | |
3/16 | 18.0 | 19.0 | 35.0(40.0) | 5.0 | |
1/4 | 19.0(20.0) | 20.0(21.0) | 55.0 | 5.0 | |
5/16 | 25.0 | 26.0 | 55.0 | 5.0 |
