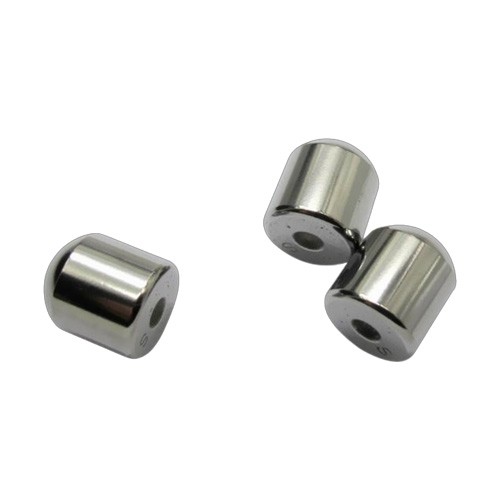

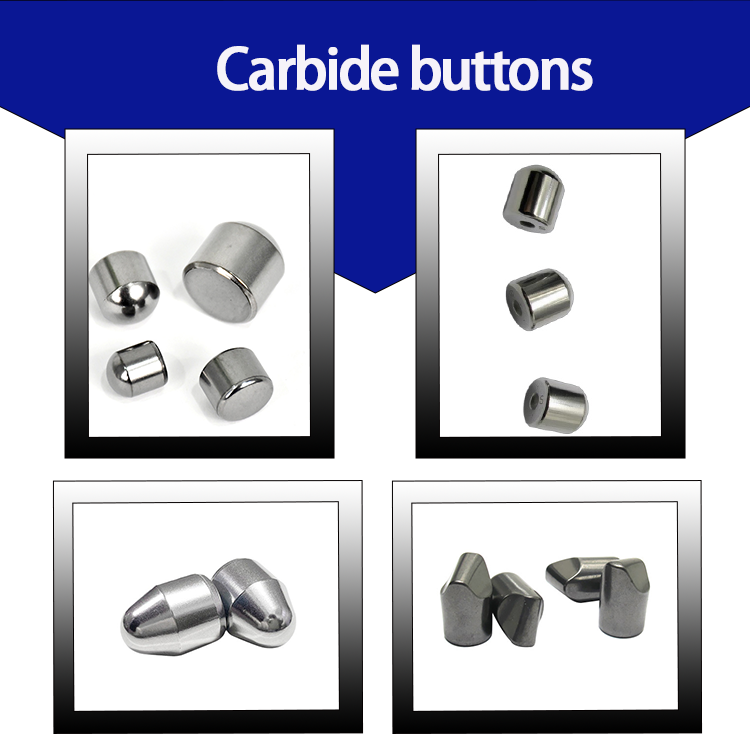

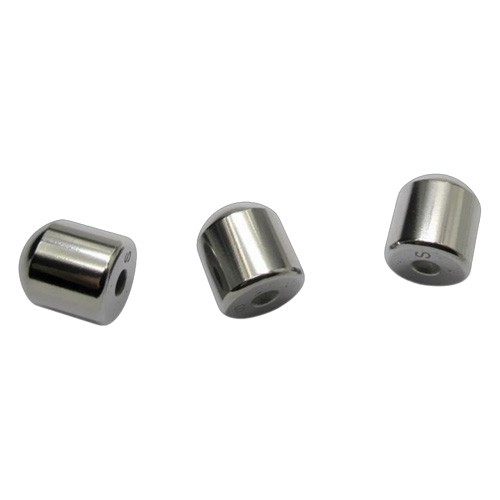

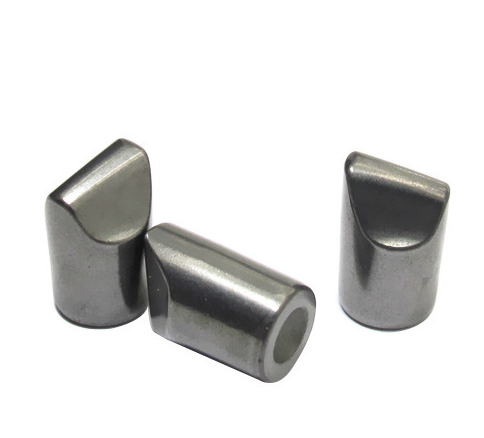

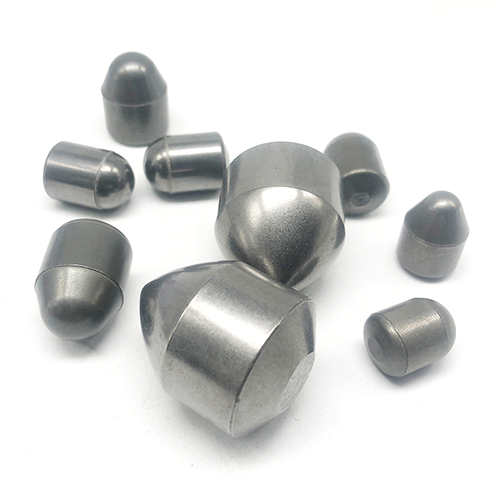

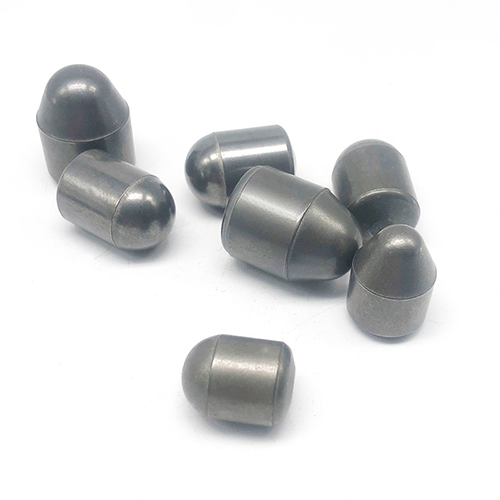

Product Name: carbide buttons
Size: customized
Material: tungsten carbide

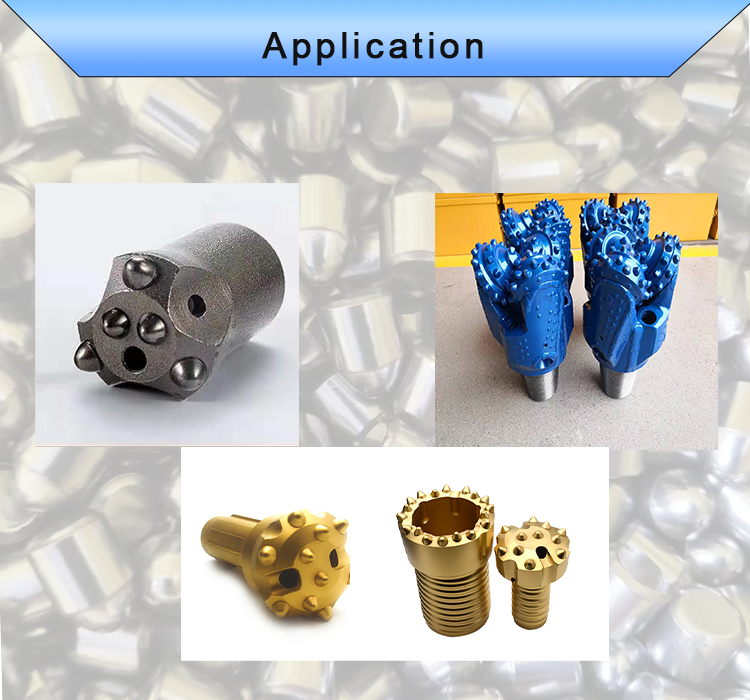

Usage: Mainly used for drill bit picks
Features
1. Utility carbide shape.
2. Good wear resist,
3. Very suited for drilling hard rock,milling products
4. Suited for abrasive to very abrasive drilling conditions
Product descrption
Grade | Density | Bending Strength | Hardness | Features and application |
YG4C | 15.1 | 1800 | 90 | It is mainly used for cutting impact drill bit with soft |
YG6 | 14.95 | 1900 | 90.5 | Used as electric coal drills, coal picks, petroleum cone drills and scraper ball drills |
YG8 | 14.8 | 2200 | 89.5 | Used as core drills, electric coal drills,coal picks, petroleum cone drills and scraper ball drills |
YG8C | 14.8 | 2400 | 88.5 | It is mainly used as the ball teeth of small and medium-sized impact drills and as the bearing shell of rotary exploration drills |
YG11C | 14.4 | 2700 | 86.5 | Most of them are used in percussion bit and roller bit to cut the ball teeth of high hardness materials |
YG13C | 14.2 | 2850 | 86.5 | It is mainly used in rotary impact drills to cut ball teeth of medium and high hardness materials. |
YG15C | 14 | 3000 | 85.5 | Cutting tool for oil cone drill bit and medium soft and hard rock excavation |
