outer diameter:2mm-6mm
inner diameter:0.5mm-0.65mm
angle:60-165°

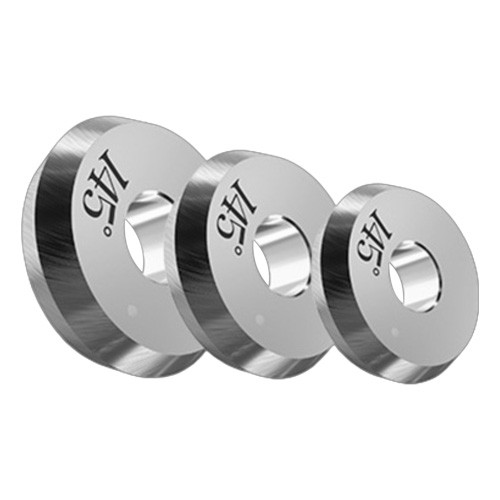

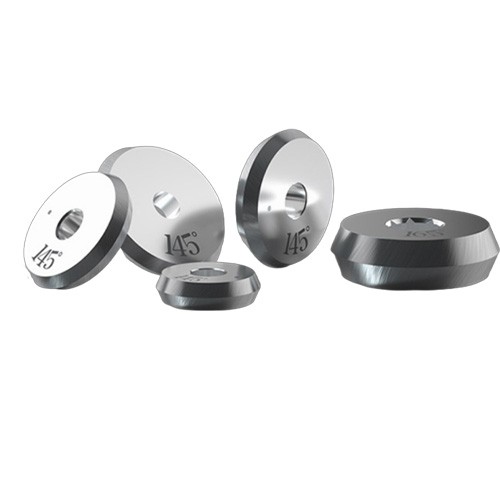

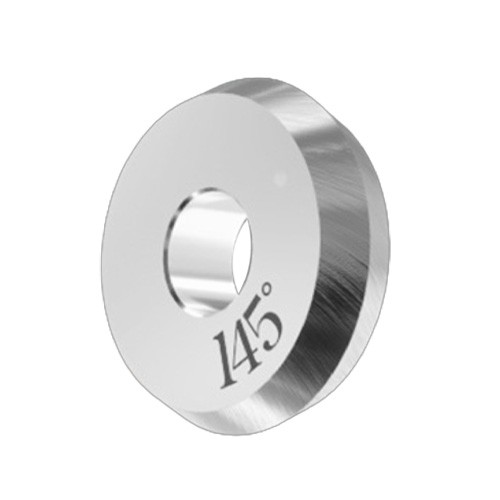

As a tool for glass cutting, the carbide scribing wheel is the primary factor to decide the cutting quality of the glass. The carbide scribing wheel features stable function, sharp cutting edge, precise cutting angle, and precise roundness and thickness of the bore. These features guarantee the excellent cutting quality.
Features:
1.Carbide glass cutting wheel uses special tungsten alloy material. It is manufactured with unique high precision processing technology. All dimensions are held within extremelytight tolerances.
2.The special tungsten alloy material and the tightly controlled tip finish at the cutting edge can guarantee the cutting quality and service life of the carbide scribing wheelCompared with similar tungsten carbide glass cutting wheels, ours has higher cutting quality and longer service life. Each and every wheel is mounted and tested on glass toinsure reproducible performance.
3.The glass is first lubricated along the cutting line with a light oil. The glass cutter is then pressed firmly against the surface of glass and a line is scribed to form a "score" or "cut".
4.All carbide wheels and axles are made of high quality tungsten alloy material and are accurately manufactured with high precision machinery. It has excellent abrasive resistance, excellent cutting results and long service life.

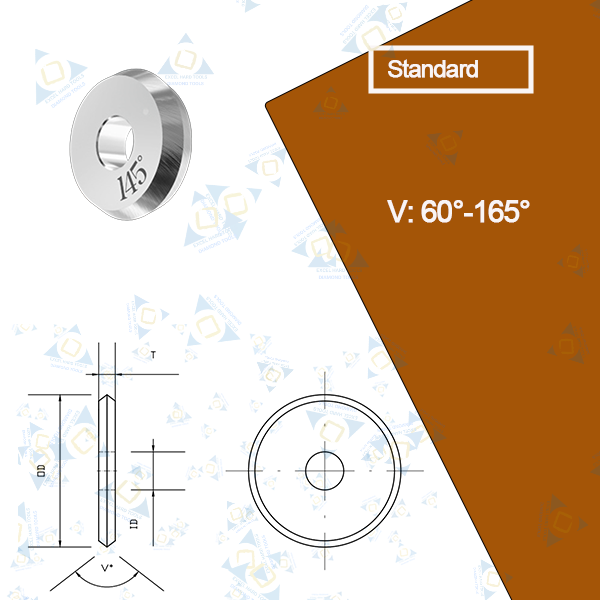

Items | Specifications | |||
OD(mm) | ID(mm) | T(mm) | V(°) | |
Standdard Carbide | 2.00 | 0.8 | 0.65 | 60-165 |
2.50 | 0.8 | 0.65 | ||
3.00 | 0.8 | 0.65 | ||
3.20 | 1.2 | 1 | ||
4.10 | 1.3 | 1 | ||
4.10 | 1.4 | 1.1 | ||
5.00 | 1.4 | 1.1 | ||
6.00 | 1.5 | 1.1 | ||
6.00 | 1.5 | 0.65 | ||
Other Size could be customed as per drawing. | ||||
Application:
The carbide scribing is used in float glass, constructional engineering glass, glass doors, windows, mirrors, automotive glass, LCD panels, and substrate glass.
