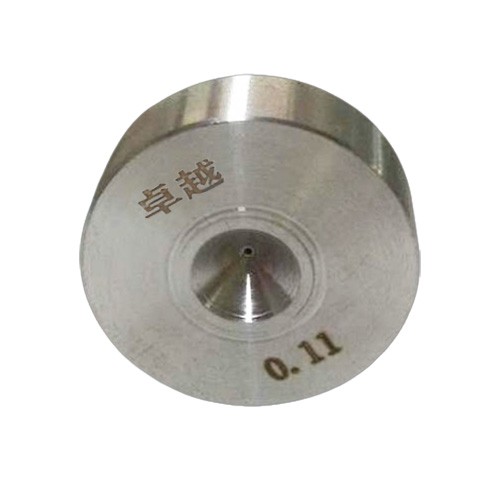

SSCD Drawing Die

Synthetic Single Crystal Diamond (SSCD) is a kind of synthetic diamond with high purity,no impurity and high stability.These quality characteristics also make the material have high hardness and stable wear resistance.
Most of the Synthetic Single Crystal Diamond Drawing Dies are LB type diamonds,which also contain nitrogen impurities,but exist in the form of dispersive substitution.Therefore,stable performance is the main feature of the dies.
Synthetic single crystal diamond has very similar physical characteristics to natural diamond,so it can be used in all occasions where natural diamond mould can be used.
It can ensure the surface finish and accuracy of wire rod and the production range of die inner diameter in the long drawing process0.05mm-0.6mm.
These quality characteristics also make the service life of the Wire Drawing Dies more stable and predictable.The advantage of this is that the diamond has a more consistent hole size than the natural diamond wire drawing dies.

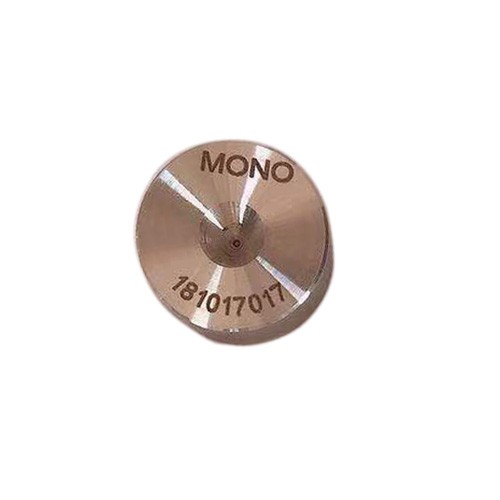

Monocrystalline Diamond (MONO) is a kind of synthetic diamond under controlled conditions.It has the characteristics of high purity,no impurity and no crack.It is mainly used in fine and ultra-fine wire drawing,or in applications requiring excellent wire surface finish and good heat dissipation performance.

.

The shell size and aperture tolerance can be specified by customers, and the company can also supply them.

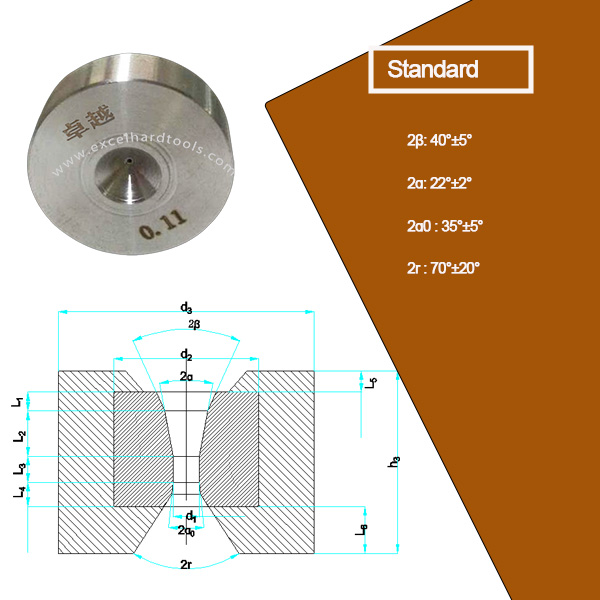

The design of the standard hole shape of all kinds of wire is as follows: (the customer can also design the hole shape by itself)

Single crystal diamond has excellent heat dissipation performance,which can be used in high temperature processing technology.Its high hardness and wear resistance ensure a long service life of the die.
