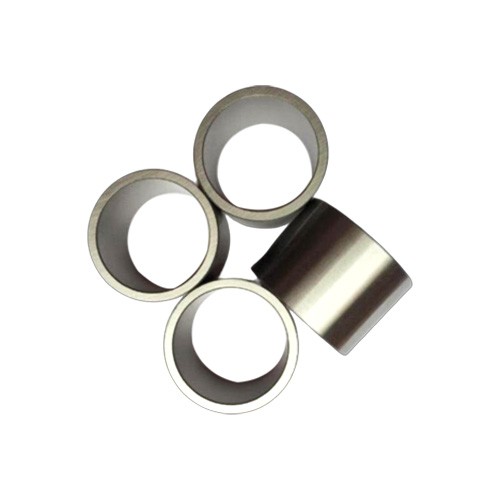

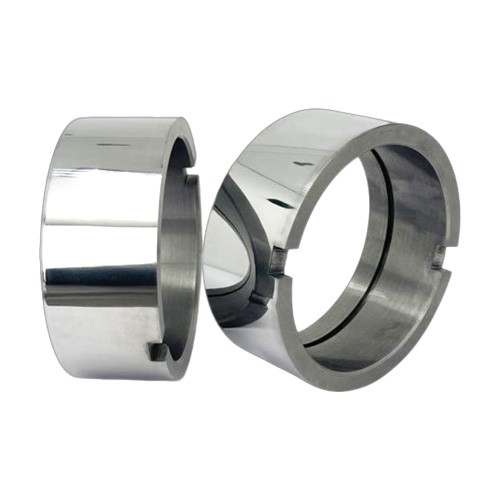

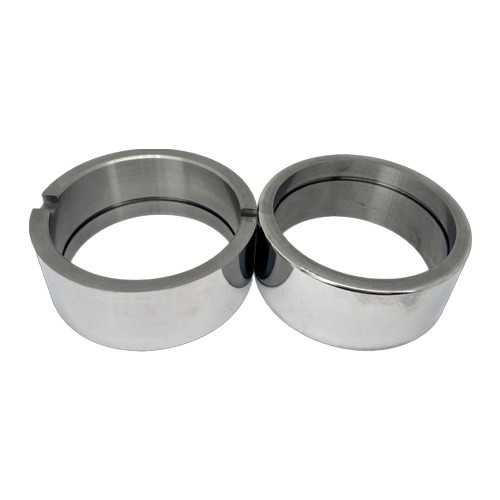

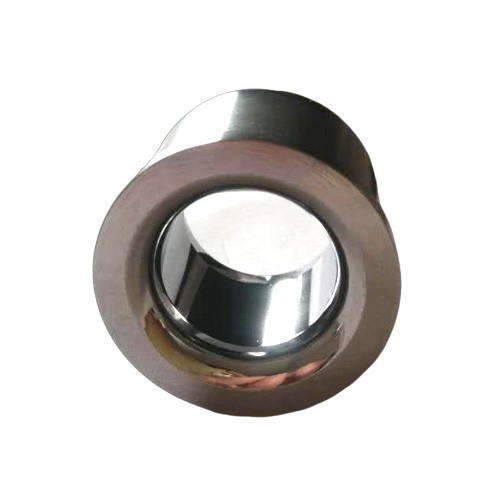

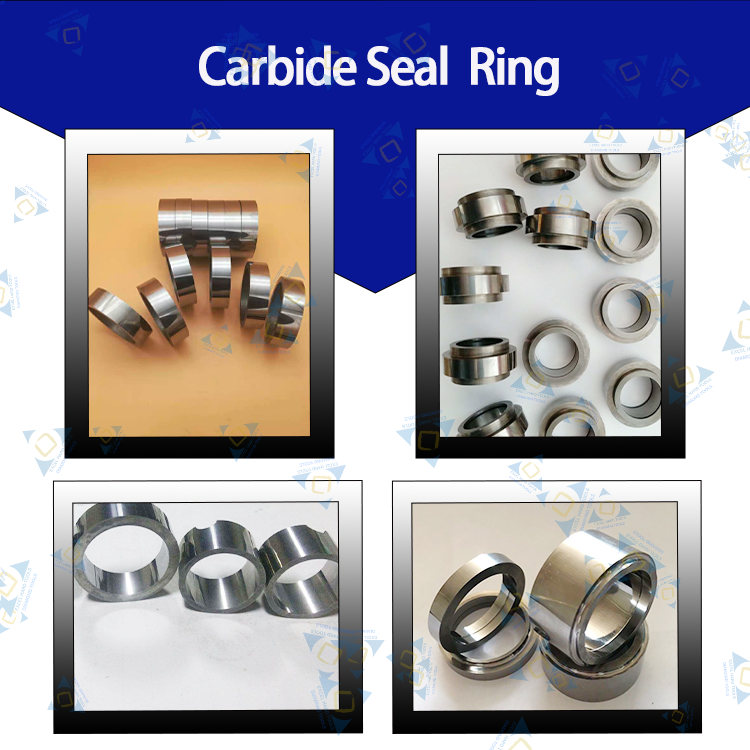

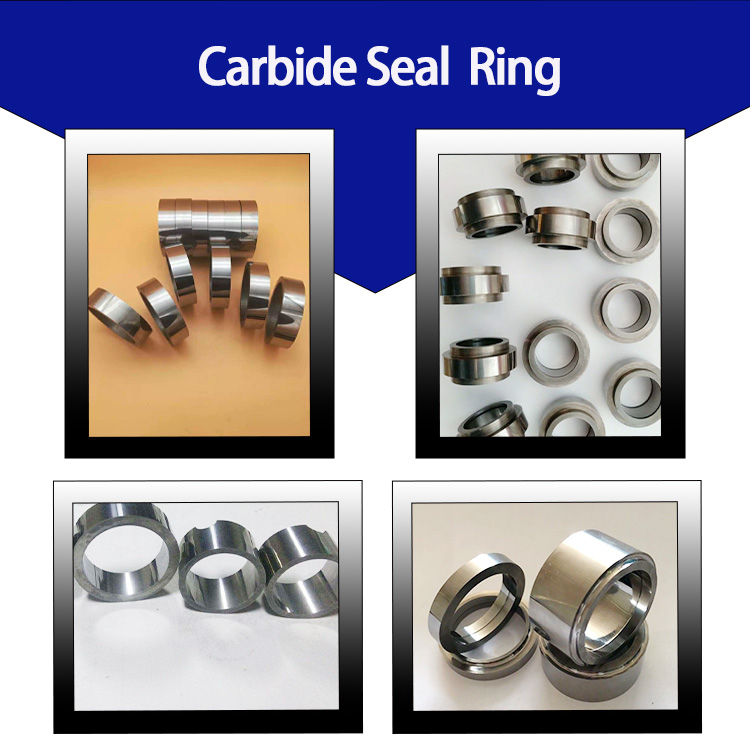

Product Name: Tungsten Carbide Seal Rings ,
Mechanical Seal, Sealing rings
Density: 14.5 g/m3
Size: OEM
Application: Mechanical seals, pumps, valve
Advantage: Superior wear,Corrosion resistance
Customized or not: Yes
Product Features:
• The precision seal ring is made of high quality materials by an advanced process.
• The seal ring has a very complicated shapes, high accuracy, stable mechanic properties
• It has much higher wear and corrosion resistance properties, and a service life of more than twenty thousand hours in the normal case
Tungsten Carbide Sealing Rings' Regular Properties table
Grade | Main chemical component | Bending Strength(≧m㎡) | Hardness | Density(g/cm³) | Linear Bulge Modulus | Suitable Medium | ||||
WC | Co | Ni | Tic | Other | ||||||
YWN6 | 94 | / | 6 | / | / | 1500 | 89 | 14.5-14.9 | 5.2 | Oil, Sewerage,Acid,Alkli, Fat, Fluidfy Hydrocarbon,Strong Alkali With Grain |
YWN8 | 92 | / | 8 | / | / | 1650 | 88 | 14.4-14.8 | 5.3 | |
YWN10 | 90 | / | 10 | / | / | 2100 | 87 | 14.5-14.9 | 5.3 | |
YG6 | 94 | 6 | / | / | / | 1550 | 89.5 | 14.7-15.1 | 5 | Oil, Sewerage,Soft Acid or Alkli, Fat, Fluidfy Hydrocarbon,Medium Alkali With Grain |
YG8 | 92 | 8 | / | / | / | 1700 | 89 | 14.6-14.9 | 5.1 | |
YG13 | 87 | 13 | / | / | / | 2400 | 88 | 13.9-14.2 | 6 | Gas seal of compressors |
YG15 | 85 | 15 | / | / | / | 2500 | 87 | 13.9-14.2 | 6.3 | |
YG10 | 80 | 10 | 8 | 8 | 2 | 1700 | 89 | 13 | 6 | Oil, Sewerage,Soft Acid or Alkli, Fat, Fluidfy Hydrocarbon,Medium Alkali With Grain |
TN80 | 20 | / | 20 | 50 | 10 | 1450 | 89 | 7 | 7.8 | |

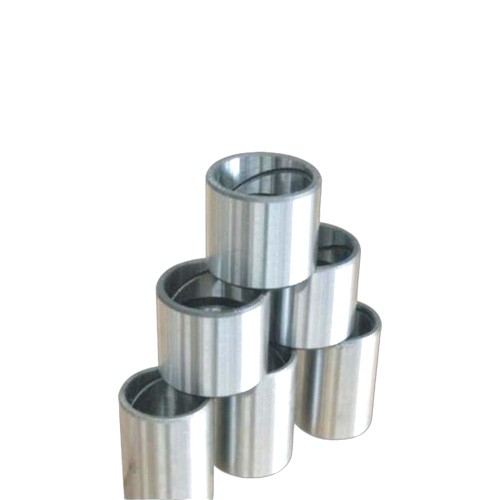

The cemented carbide shaft sleeve has the characteristics of super-high hardness, crossion resistance, aging resistance and superior wear resistance.It is generally used for mechanical fittings and various industrial pumps.
