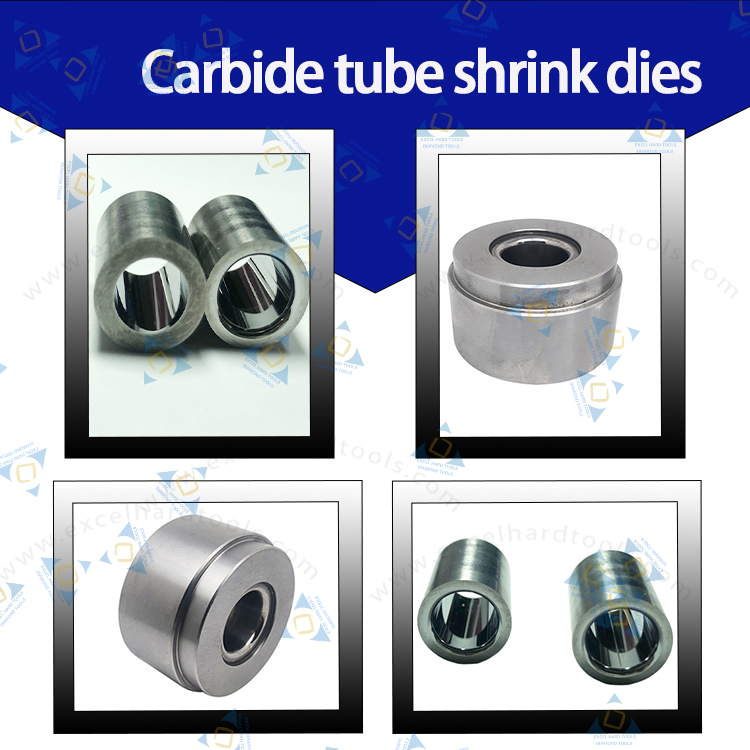

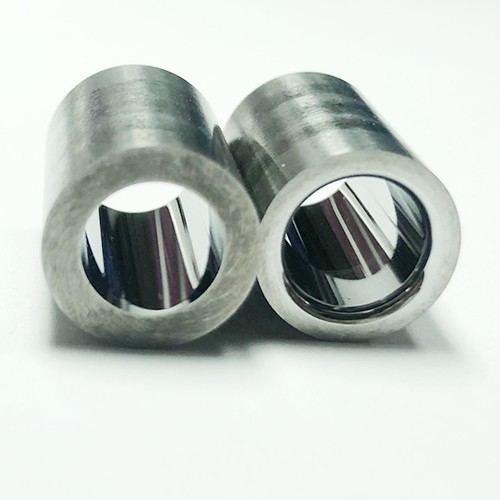

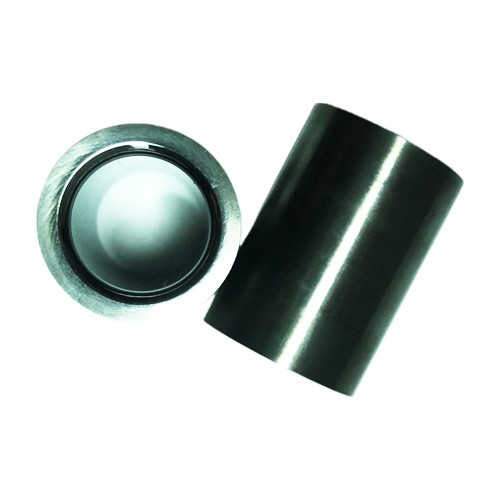

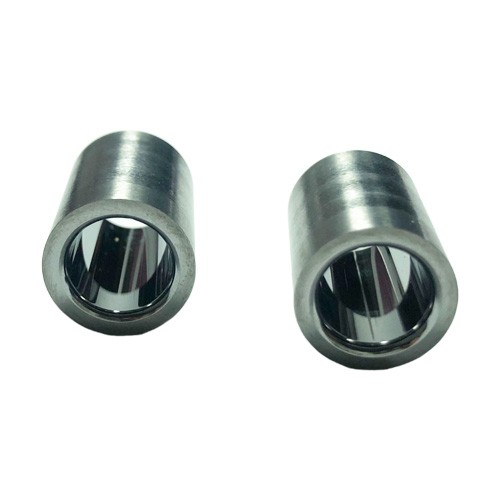

tungsten carbide tube shrink die

Shrink pipe die is a tool commonly used in the field of metal processing, its principle is to use the mold to compress the metal pipe, so as to achieve the effect of reducing the diameter of the pipe. In this way, the originally thick pipe can be made more slender.

The core part of the tube mold is the mold. Molds are usually made of high-strength alloy materials with certain hardness and wear resistance. The internal profile of the mold matches the desired shape of the pipe, and the pipe can be compressed into the desired size through the pressure action of the mold.

The working principle of the shrink tube die is to use mechanical force to place the tube inside the die and apply the appropriate pressure. In the process of applying pressure, the pipe will be squeezed by the internal mold, which will gradually reduce the diameter of the pipe. By controlling the amount of pressure and the time applied, precise control of pipe diameter and wall thickness can be achieved.

Carbide Stretch forming dies are widely used as drawing ,forming, molding dies such as stainlesssteel tableware, metalare, hardwareitting,etc in automotive,electronics, daily necessities,instruments,aerospace and other industrial sectors of the production, not only can machining rotating parts can also process box-shaped parts and other complex thin-walled parts.Tungsten carbide is a high hardness metal material with a long life which is about 10 times of ordinary dies.

Our factory is professionally produce custimized, non-standard, special and non-magnetic parts.
Our business is focus on:
1. Customized and special shape parts and workblank.
2. Non-standard parts and workblank.
3. Dies or workblank of stretching, drawing, cutting, flating, hot forging, cold heading, cold extruding, forming for all related machinery industry.
4. Non-magnetic alloy dies for magnetic industry.
5. Standard parts of rod, block, bar and stick, etc.
6. Mining tools like bits, blaze, inlay cutter, sand maker's T- bar and R-bar, etc.
7. Other wear-resistance, anti-corrosion and non-magnetic products.
