pdc cutters for oil drilling industry

diameter:13.45-19.06mm
height:8-16mm
thickness of pcd layer:1.6-2.2mm

Polycrystalline Diamond Compact (PDC) of our company is sintered with diamond and WC under ultrahigh pressure and temperature. It integrates the advantages of diamond and WC, with both extremely high wear resistance and excellent shock strength. Be suitable for manufacturing all kinds of drilling tools, such as oil, geological and engineering drilling bits.


PDC for oil drilling bits series

We produced oil drilling series diamond composite which introduce advanced technology ,the carbide surface as well as latest synthetic technology and special post-treatment process.The use of higher-level diamond significantly reduces the impurity content, and improves the bonding strength between the diamonds and maintains the impact resistance at he same time. It also increases in the wear resistance and thermal stability of the PDC.

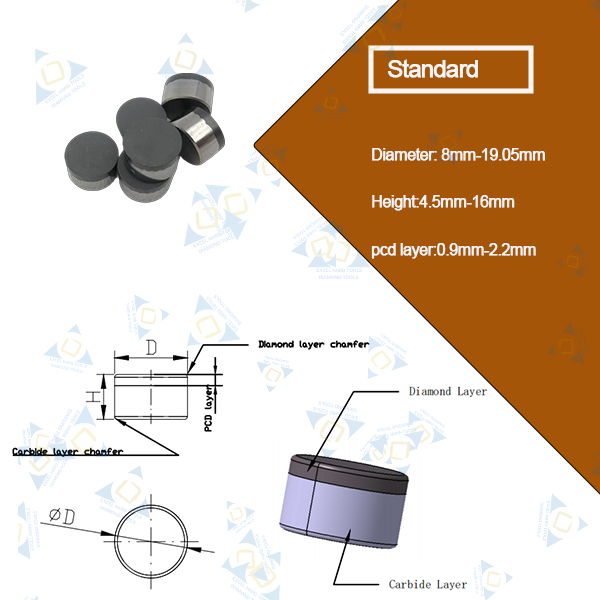

网页内容制作所需图片-P<a href=http://www.excelhardtools.com/pdc-cutters.html target='_blank'>pdc cutters</a> with waterprint.png

Commodity Name

Model No.

Specification

pdc cutters for Oil and gas drilling bits

D(mm)

H(mm)

PCD layer(mm)

Diamond layer chamfer

Carbide Layer Chamfer

ZY-POG1308

13.44±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-POG1313

13.44±0.03

13.2±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-POG1610

15.88±0.03

10.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-POG1613

15.88±0.03

13.2±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-POG1913

19.05±0.05

13.2±0.10

2.0-2.5

0.5x45°

0.5x45°

ZY-POG1916

19.05±0.05

16.0±0.10

2.0-2.5

0.5x45°

0.5x45°

Other Size could be customed as per drawing.



PDC cutters Application_.jpg
