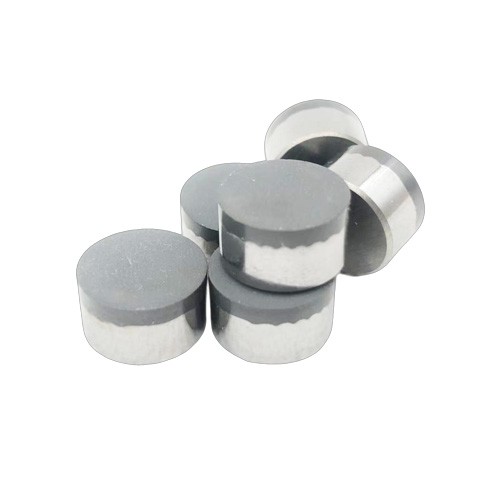

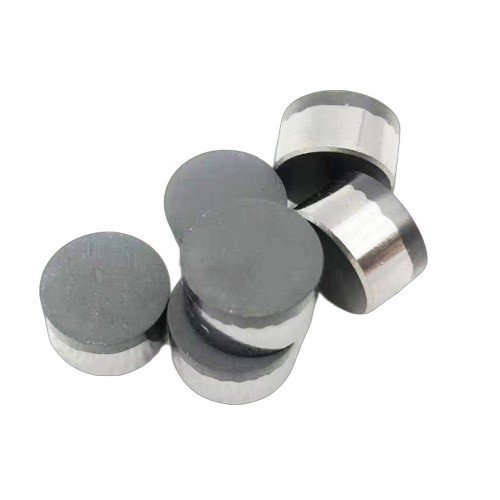

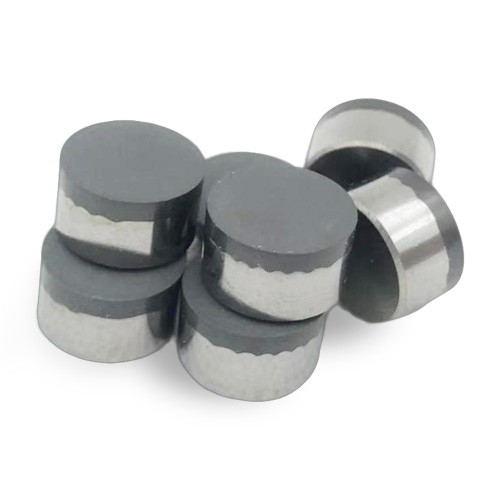

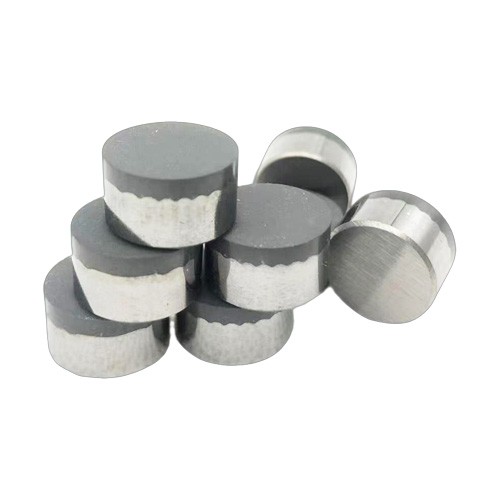

pdc cutters for mining industry

diameter:13.35mm-19.05mm
height:4.5mm-16mm
pcd layer:0.9mm-2.2mm

Polycrystalline Diamond Compact (PDC) of our company is sintered with diamond and WC under ultrahigh pressure and temperature. It integrates the advantages of diamond and WC, with both extremely high wear resistance and excellent shock strength. Be suitable for manufacturing all kinds of drilling tools, such as oil, geological and engineering drilling bits.

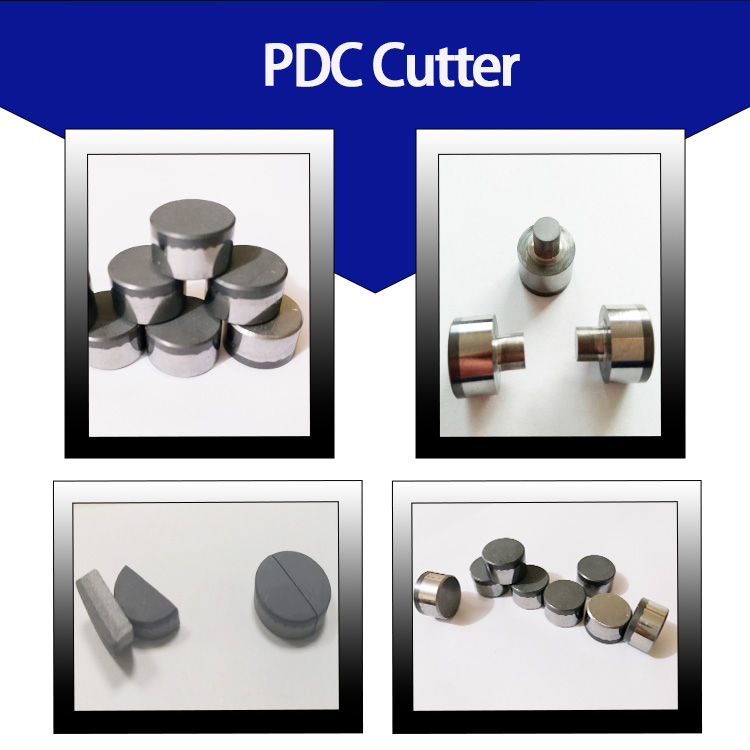

pdc cutters.jpg


By use,  PDC cutter includes three series:

1.PDC for oil drilling bits series

We produced oil drilling series diamond composite which introduce advanced technology ,the carbide surface as well as latest synthetic technology and special post-treatment process.The use of higher-level diamond significantly reduces the impurity content, and improves the bonding strength between the diamonds and maintains the impact resistance at he same time. It also increases in the wear resistance and thermal stability of the PDC.

PDC for oil drilling bits series/Size

Product
Specification

D(mm)

H(mm)

Pcd layer(mm)

1308ZY

13.45

8.00

1.6-1.8

1310ZY

13.45

10.00

1.6-1.8

1313ZY

13.45

13.20

1.6-1.8

1608ZY

16.06

8.00

1.8-2.0

1610ZY

16.06

10.00

1.8-2.0

1613ZY

16.06

13.20

1.8-2.0

1908ZY

19.06

8.00

2.0-2.2

1910ZY

19.06

10.00

2.0-2.2

1913ZY

19.06

13.20

2.0-2.2

1916ZY

19.06

16.00

2.0-2.2


2.PDC for Coal Field Mining Drilling Bits Series.

We produced the coal mining series which introduce advanced technology,combined with non-planar diamond layer and carbide interface ,greatly improve the impact resistance and thermal stability of PDC; it is suitable for soft to medium hard geological rock formation especially, which has a strong impact,fast drilling speed, timeliness and high resistance and mainly used in the manufacture of coal mines with PDC bits.

PDC for coal mining bits series/Size

Product
Specification

D(mm)

H(mm)

Pcd layer(mm)

1004PZY

10.4

4.50

0.9-1.1

1204PZY

12.4

4.50

1.2-1.4

1304PZY

13.35

4.50

1.2-1.4

1308PZY

13.35

8.00

1.4-1.6


3.PDC for Geology Exploration and Mining Field Drill Bits Series.

We produce series of Geological exploration plolycrystalline diamond compact which introduce advanced technology, high-grade, more abrasive diamond powder as raw material.Steps and mesh shallow groove combined diamond layer and carbide interface , improved stress distribution of PDC cutter, greatly the reliability and service life of the product.

PDC for geology exploring and mining bits series/Size

Product
Specification

D(mm)

H(mm)

Pcd layer(mm)

1004PSZY

10.4

4.50

1.0-1.2

1004PTZY

10.4

4.50

1.4-1.6

1204PSZY

12.4

4.50

1.0-1.2

1204PTZY

12.4

4.50

1.4-1.6

1304PSZY

13.35

4.50

1.2-1.4

1304PTZY

13.35

4.50

1.4-1.6

1308PSZY

13.35

8.00

1.6-1.8

1308PTZY

13.35

8.00

1.6-1.8

1604PSZY

16.05

4.50

1.4-1.6

1604PTZY

16.05

4.50

1.4-1.6

1608PSZY

16.05

8.00

1.6-1.8

1608PTZY

16.05

8.00

1.6-1.8

1908PTZY

19.05

8.00

1.8-2.0

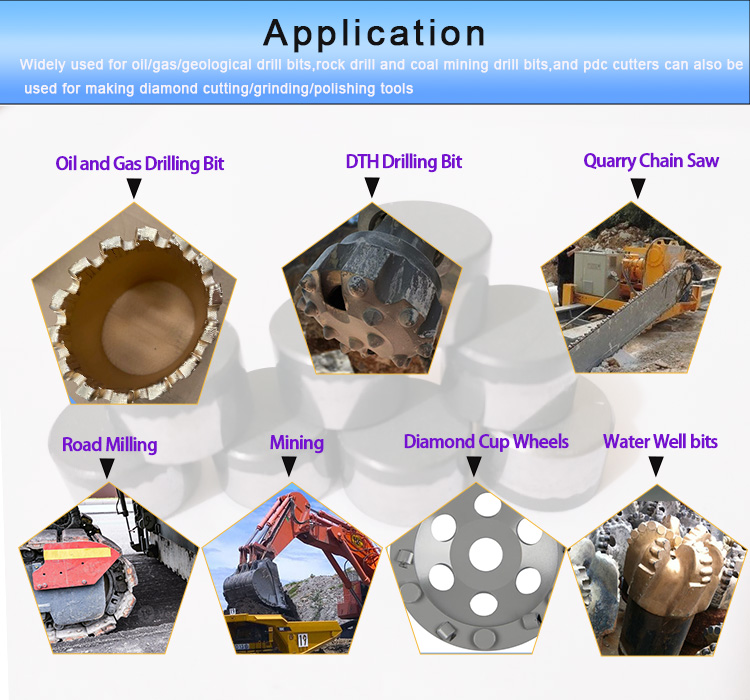

PDC cutters Application_.jpg
