pdc cutters for coal industry

diameter:10.4-13.35mm
height:4.5-8mm
thickness of pcd layer:0.9-1.6mm

PDC for Coal Field Mining Drilling Bits Series.

We produced the coal mining series which introduce advanced technology,combined with non-planar diamond layer and carbide interface ,greatly improve the impact resistance and thermal stability of PDC; it is suitable for soft to medium hard geological rock formation especially, which has a strong impact,fast drilling speed, timeliness and high resistance and mainly used in the manufacture of coal mines with PDC bits.

网页内容制作所需图片-P<a href=http://www.excelhardtools.com/pdc-cutters.html target='_blank'>pdc cutters</a> with waterprint.png

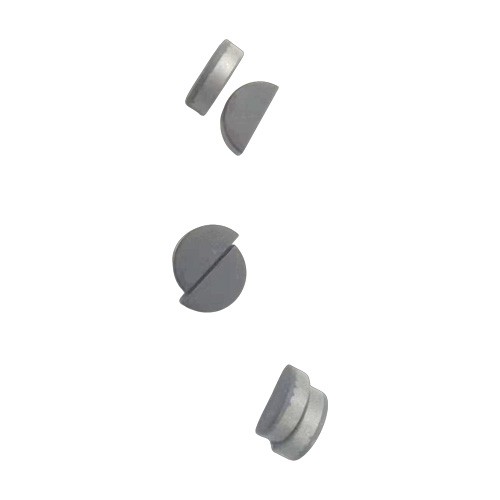

It also can be cut into pieces as per customers' requests.

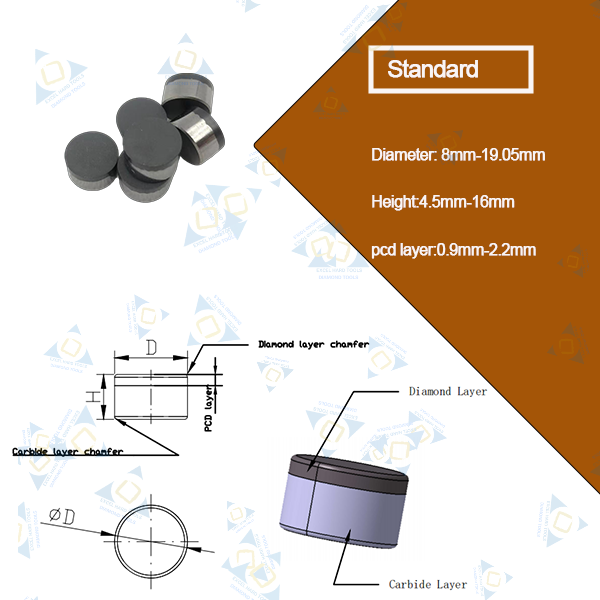

Commodity Name

Model No.

Specification

pdc cutters for
 Coal/Mining bits

D(mm)

H(mm)

PCD layer(mm)

Diamond layer chamfer

Carbide Layer Chamfer

ZY-PCM0804

8.00±0.03

4.5±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM0808

8.00±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM0810

8.00±0.03

10.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM1004

10.00±0.03

4.5±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM1008

10.00±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM1010

10.00±0.03

10.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM1304

13.44±0.03

4.5±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM1308

13.44±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

ZY-PCM1313

13.44±0.03

13.2±0.10

2.0-2.5

0.3x45°

0.5x45°

Other Size could be customed as per drawing.
