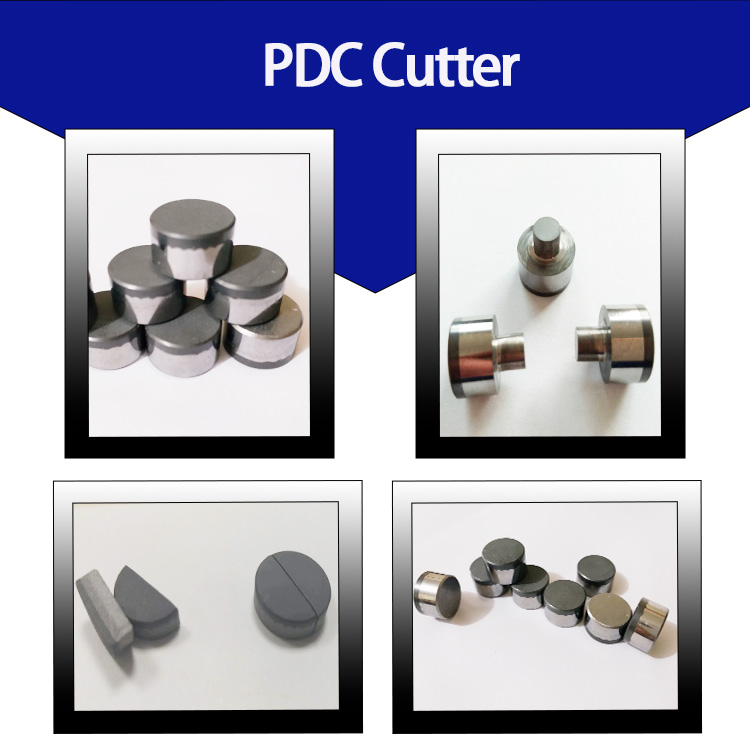

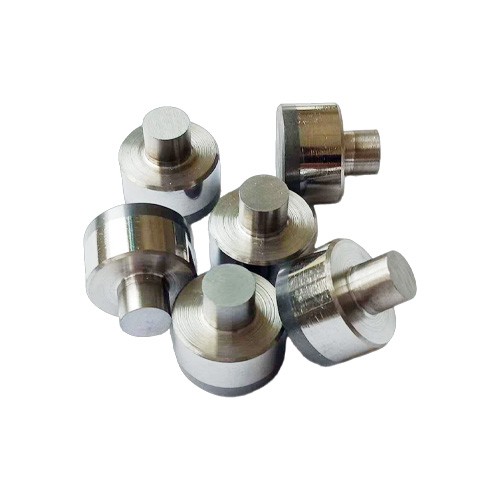

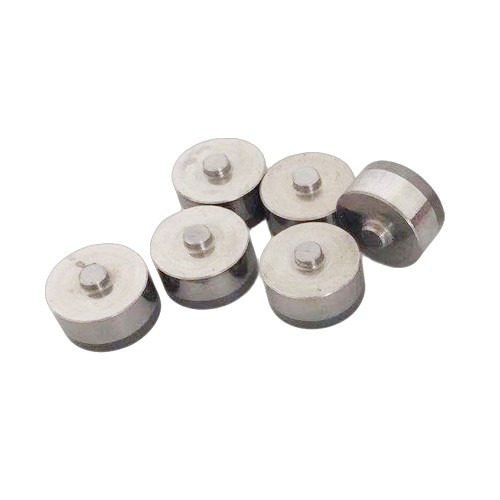

pdc cutters with step for quarry

diameter:13.35mm-19.05mm
height:8mm-16mm
pcd layer:1.6mm-2.2mm
other:customed

Polycrystalline Diamond Compact (PDC) of our company is sintered with diamond and WC under ultrahigh pressure and temperature. It integrates the advantages of diamond and WC, with both extremely high wear resistance and excellent shock strength. Be suitable for manufacturing all kinds of drilling tools, such as oil, geological and engineering drilling bits.


网页内容制作所需图片-P<a href=http://www.excelhardtools.com/pdc-cutters.html target='_blank'>pdc cutters</a> with waterprint.png

PDC for Geology Exploration and Mining Field Drill Bits Series.

We produce series of Geological exploration plolycrystalline diamond compact which introduce advanced technology, high-grade, more abrasive diamond powder as raw material.Steps and mesh shallow groove combined diamond layer and carbide interface, improved stress distribution of PDC cutter, greatly the reliability and service life of the product.


Commodity Name

Model No.

Specification

pdc cutters for
Geology Exploration and Mining Field Drill Bits

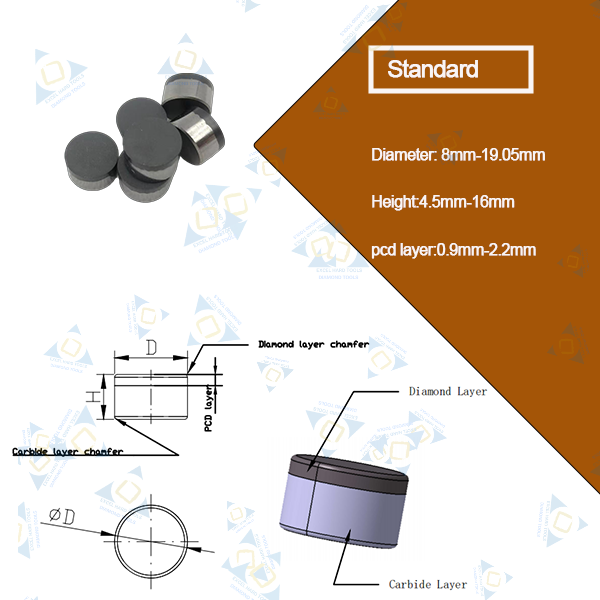

D(mm)

H(mm)

PCD layer(mm)

Diamond layer chamfer

Carbide Layer Chamfer

ZY-PGM1004PS

10.00±0.03

4.5±0.10

1.0-1.2

0.3x45°

0.5x45°

ZY-PGM1004PT

10.00±0.03

4.5±0.10

1.4-1.6

0.3x45°

0.5x45°

ZY-PGM1204PS

12.4±0.03

4.5±0.10

1.0-1.2

0.3x45°

0.5x45°

ZY-PGM1204PT

12.4±0.03

4.5±0.10

1.4-1.6

0.3x45°

0.5x45°

ZY-PGM1304PS

13.35±0.03

4.5±0.10

1.2-1.4

0.3x45°

0.5x45°

ZY-PGM1304PT

13.35±0.03

4.5±0.10

1.4-1.6

0.3x45°

0.5x45°

ZY-PGM1308PS

13.35±0.03

8.0±0.10

1.4-1.6

0.3x45°

0.5x45°

ZY-PGM1308PT

13.35±0.03

8.0±0.10

1.6-1.8

0.3x45°

0.5x45°

ZY-PGM1604PS

16.05±0.03

4.5±0.10

1.4-1.6

0.3x45°

0.5x45°

ZY-PGM1604PT

16.05±0.03

4.5±0.10

1.6-1.8

0.3x45°

0.5x45°

ZY-PGM1608PS

16.05±0.03

8.0±0.10

1.6-1.8

0.3x45°

0.5x45°

ZY-PGM1608PT

16.05±0.03

8.0±0.10

1.8-2.0

0.3x45°

0.5x45°

ZY-PGM1908PT

19.05±0.03

8.0±0.10

1.8-2.0

0.3x45°

0.5x45°

Other Size could be customed as per drawing.
